The Archer VR900 makes full use of its dual band Wi-Fi abilities, reaching speeds of up to 600Mbps on the 2.4GHz band and 1300Mbps on the 5GHz band. Enjoy a total speed of up to 1.9Gbps to eliminate buffering from your HD streams and lag from online games.
The two wireless bands are separated in two dedicated Wi-Fi networks, supporting more devices while reducing signal interference, to deliver a stable connection for every wireless device in your home.
| brand |
|---|
| HARDWARE FEATURES | |
|---|---|

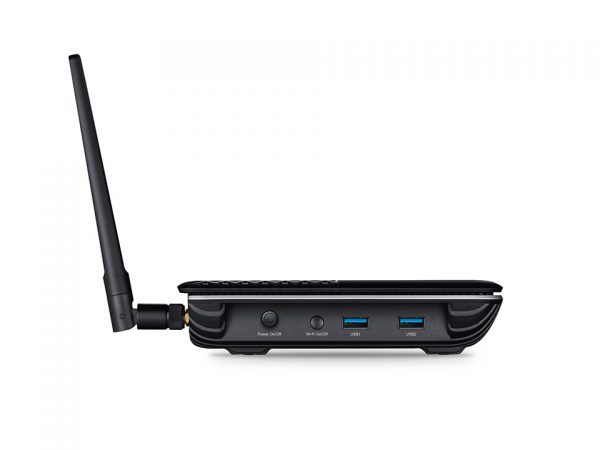

| Interface | 1 10/100/1000Mbps RJ45 WAN/LAN Port 3 10/100/1000Mbps RJ45 LAN Ports 1 RJ11 Port 2 USB 3.0 Port |
| Button | WPS Button, Reset Button, LED On/Off Button, Wireless On/Off Button, Power On/Off Button |
| External Power Supply | 12V/2.5A |
| IEEE Standards | IEEE 802.3, IEEE 802.3u, 802.3ab |
| VDSL2 Standards | ITU-T G.993.2, Up to 17a profile (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP） |
| ADSL Standards | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
| ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions ( W x D x H ) | 216 x 164 x 36.8mm |
| Antenna Type | 3 external detachable dual band antennas (RP-SMA) |
| Antenna Gain | 3 x 2dBi for 2.4GHz and 3 x 3dBi for 5GHz |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Wireless Speeds | 1300Mbps at 5GHz, 600Mbps at 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Transmit Power | <20dBm(EIRP) |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Support 2.4GHz and 5GHz Wireless Schedule |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | ATM QoS, Traffic Control(IP QoS) |
| Security | NAT Firewall, Access Control, MAC / IP / URL Filtering, IP and MAC Address Binding |
| Operating Modes | VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router |
| Management | Web Based Configuration(HTTP), Remote management, command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update |
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec Passthrough |
| Protocols | Supports IPv4 and IPv6 |
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
| Advanced Functions | Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3 |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server, 3G/4G Modem |
| Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| OTHERS | |
|---|---|
| Certification | CE, RCM, RoHS |
| Package Contents | AC1900 Wireless Dual Band Gigabit VDSL/ADSL Modem Router Archer VR900 External Splitter RJ11 DSL Cable RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an Internet Service Provider (for Internet access) |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
